Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X

Name: Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X
Brand: FOIF
Price: 165 USD

China Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X wholesale

Brand Name : FOIF

Model Number : NAL124

Place of Origin : China

MOQ : 1 set

Price : ＄165

Payment Terms : T/T, L/C

Delivery Time : 30 work day

Product Name : Automatic Level FOIF NAL124

Warranty : 1 Year

Magnification : 24X

Setting accuracy : ≤0.5"

Field of view at 100 : >3.2m

Shortest focusing distance : ≤0.6m

multiplication constant : 100

free diameter of objective : 36mm

Circular bubble : 8'/2mm

working range : ≥±15'

graduation : 360 or 400gon

Weight : 2kg

Contact Now

Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X

Product Description

Specifications

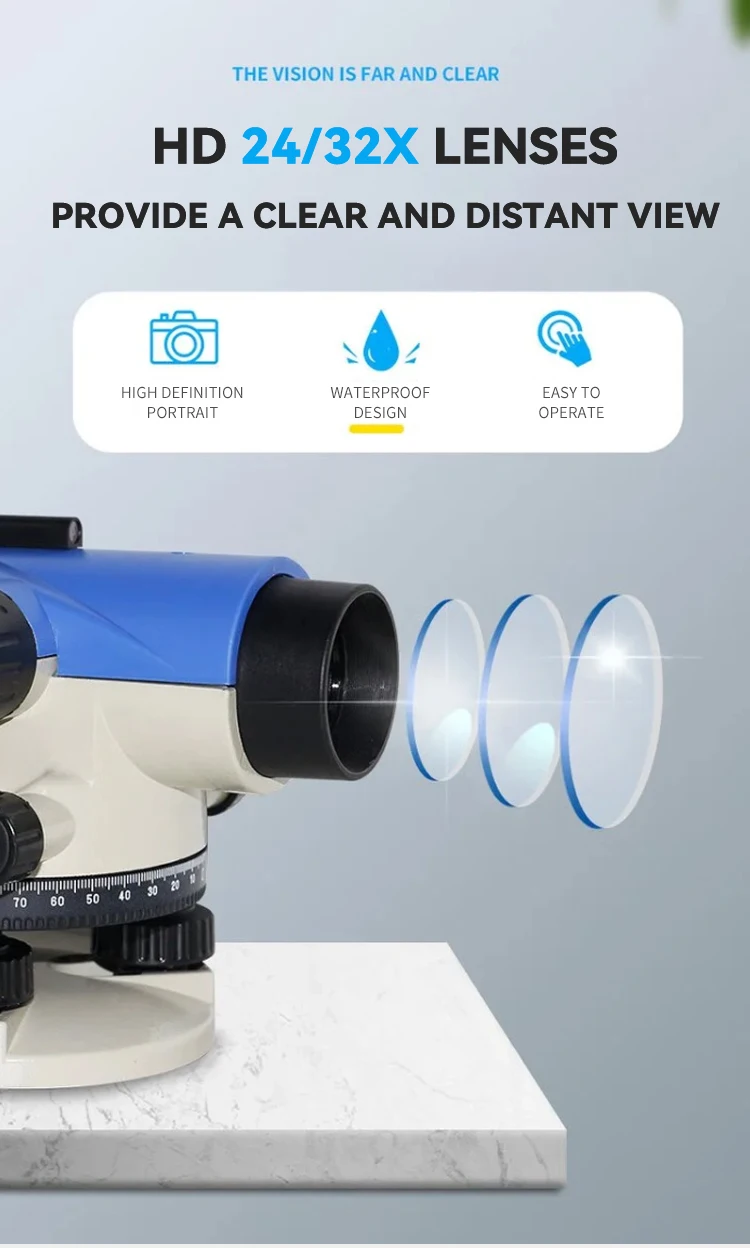

Magnification	24X
Standard deviation per kilometer double-run	±2.0mm
Setting accuracy(standard deviation)	<0.5"
Compensator working scope	≥±15′
Telescope imaging	Erect
Clear objective aperture	36mm
Field of view at 100m	>3.2m
Shortest focusing distance	0.5m
Stadia multiplication constant	100
Stadia additive constan	0
Circular bubble precision	8′/2mm
Graduation	360 or 400gon
Interval	1 or 1gon
Adoption (Base Plate)	Flat and Dome
Central fixing screw	W 5/8" (55°)
Storage temperature	-40℃ to +75℃
Operating temperature	-30℃ to +50℃

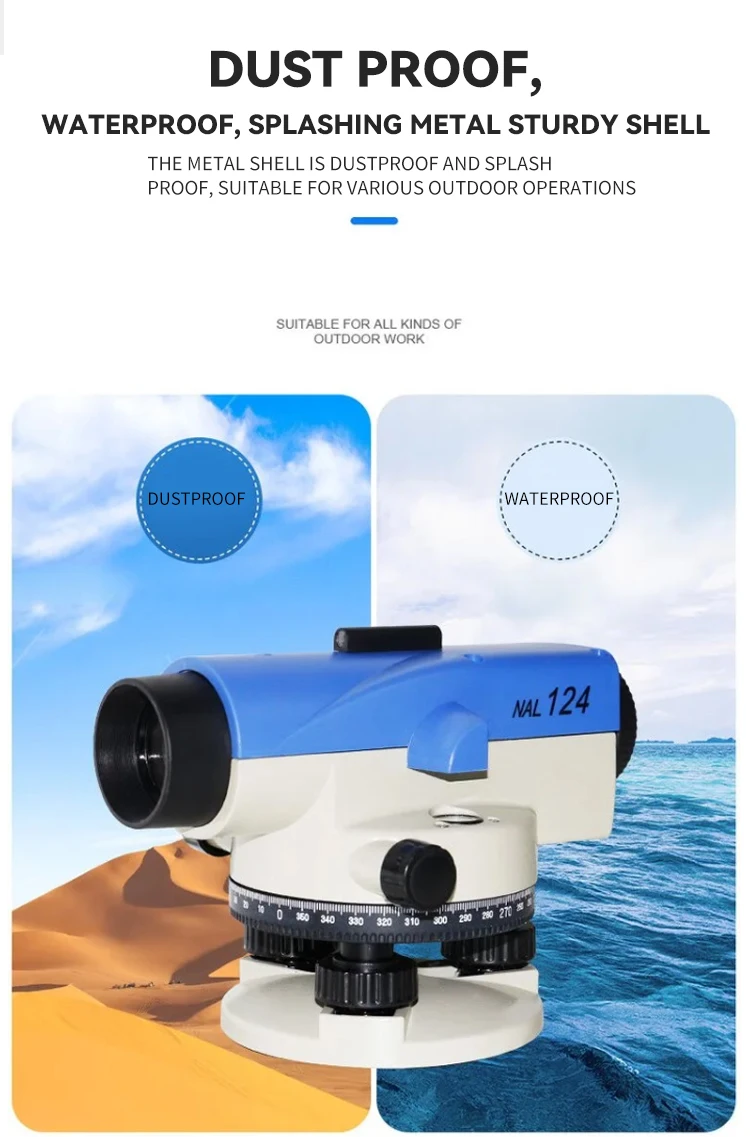

Water and dust resistance	IP55
Weight without container	2.0kg

Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X

Usage
一, Instrument Installation
1,Adjust the tripod to the human eye level position, tighten the screws.
2,Adjust the tripod roughly horizontal, the tripod fixed on the ground
3,Mount the instrument on the tripod and tighten the centre screw.
4,adjust the foot screw handwheel, so that the blister is centred.
二, the blister levelling method
1,Adjust the instrument foot screw handwheel, so that the blister is centred.
2,screw the foot screw handwheel, so that the bubble to the centre of the scribing circle to move 1/2
3,the use of hexagonal wrench to adjust the bubble screw, so that the bubble moved to the centre
4,Repeat the above steps until the telescope turned to any direction of the circle water bubble is always in the centre.
5, the instrument turned 180 ° original blister should be in the centre, otherwise it must be corrected.
